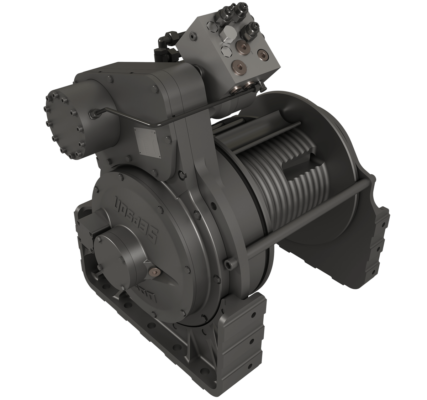

Sepson H50K-⅞"

Built to be Rotator Ready

Compliant to SAE J706

Common Specifications

Max Pulling Force (Low)
Bottom Rope Layer	50,000 Ibs
Top Rope Layer	34,800 Ibs
Max Rope Speed (Low/High)
Bottom Rope Layer	10 / 36 ft/min
Top Rope Layer	17 / 55 ft/min
Max Oil Pressure	3,000 psi
Max Oil Flow	20 gpm
Rope Drum Diameter	11”
Rope Diameter	⅞”
D/d	13.7:1
No of Rope Layers	4
Rope L / Wt	260 ft / 441 Ibs
Winch Wt	1,160 Ibs

Model Variations

H50K-⅞”	Free Spool	Underwound	Overwound	Left Hand	Right Hand
6334-121	Pneumatic		X	X
6334-122	Pneumatic		X		X
6334-125	Pneumatic	X		X
6334-126	Pneumatic	X			X

Dimensional Drawings (in mm)

Underwound Left Hand Model

DOWNLOAD FULL MOUNTING SPECS

Underwound Right Hand Model

DOWNLOAD FULL MOUNTING SPECS

Overwound Left Hand Model

DOWNLOAD FULL MOUNTING SPECS

Overwound Right Hand Model

DOWNLOAD FULL MOUNTING SPECS

Snatch Blocks

Increased power + flexibility for safer, more efficient recovery operations.

Our snatch blocks, for Sepson and Vime Winches, provide mechanical advantage to increase pulling power, allowing winches to generate higher forces or recover vehicles from challenging positions. They also offer versatility by changing the direction of the winch cable, enabling towing from various angles without straining the winch or overloading the vehicle’s anchor points.

SNATCH BLOCK FEATURES

Corrosion Resistant, Zinc-Plating Standard
Built-In Carrying Handle
Designed for Debris Mitigation
Rounded Corners for Smooth Travel Over Bumpy Surfaces

NOTE: NOT FOR LIFTING, ONLY FOR PULLING.

AVAILABLE CAPACITIES

Sepson/Vime	Item No	Max Pulling Force	Working Load Limit	Max Rope Diameter	Rope Sheave Diameter	Wt
67,000 lbs Snatch Block	28.28.100	33,500 lbs	67,000 lbs	5/8ˮ	6-1/3ˮ	20 lbs
90,000 lbs Snatch Block	28.27.107	45,000 lbs	90,000 lbs	3/4ˮ	8-1/2ˮ	52 lbs
135,000 lbs Snatch Block	28.27.109	67,500 lbs	135,000 lbs	1-1/8ˮ	8-1/2ˮ	52 lbs
